How to program VW Golf GTI 07 key by SKP900

Here is the instruction on programming key for VW Golf GTI 2007 year by using SuperOBD SKP900 key programmer via OBD2 within 4 minutes.

Step 1: Read Pin Code

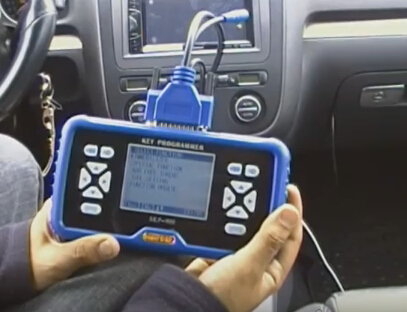

Connect OBDII plug with vehicle
Connect Main cable with SPK900



Select IMMOBILIZER function

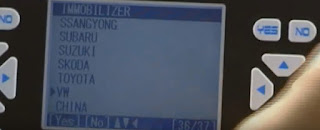

Select vehicle brand: VW

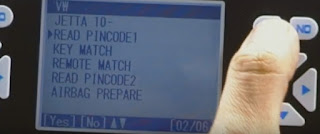

Select Read Pincode 1



Loading



Select read pin code from system 1-5

Here we select Password reading from SYS3 (System 3)



choose OBDII adapter, turn ignition ON



Communicating

Porgrmaming system,please wait

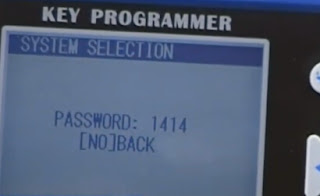

SKP-900 read Golf GTI pin code



Step 2: Program Key

Back to VW menu

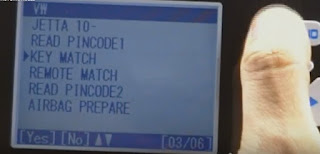

Select KEY MATCH

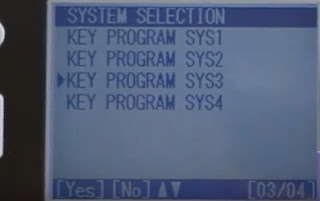

Select system: Key program SYS3



choose OBDII adapter, turn ignition ON

Communicating

SKP900 requires to input password to access, manually enter pincode just read



Confirm pincode

Programming system, please wait

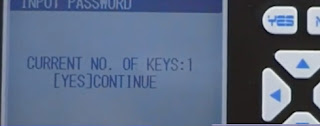

Check current number of keys:1

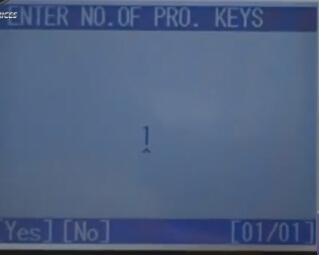

Enter number of keys keys you want to program and confirm (maximum  2 keys to be programmed)



Programming in process

Use all matching keys to turn ignition ON

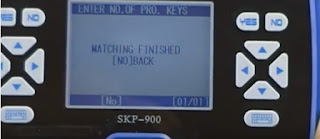

Key Matching finished


Test the new programmed key
